2500-Nit IP66 Outdoor High-Brightness LCD Digital Signage Display | Single Screen | 32–86 Inch | Optical Bonding | Wall-Mount or Floor-Standing | Optional Touchscreen

Product Title

2500-Nit IP66 Outdoor High-Brightness LCD Digital Signage Display | 32–86 Inch | Optical Bonding | Wall-Mount or Floor-Standing | Optional Touchscreen

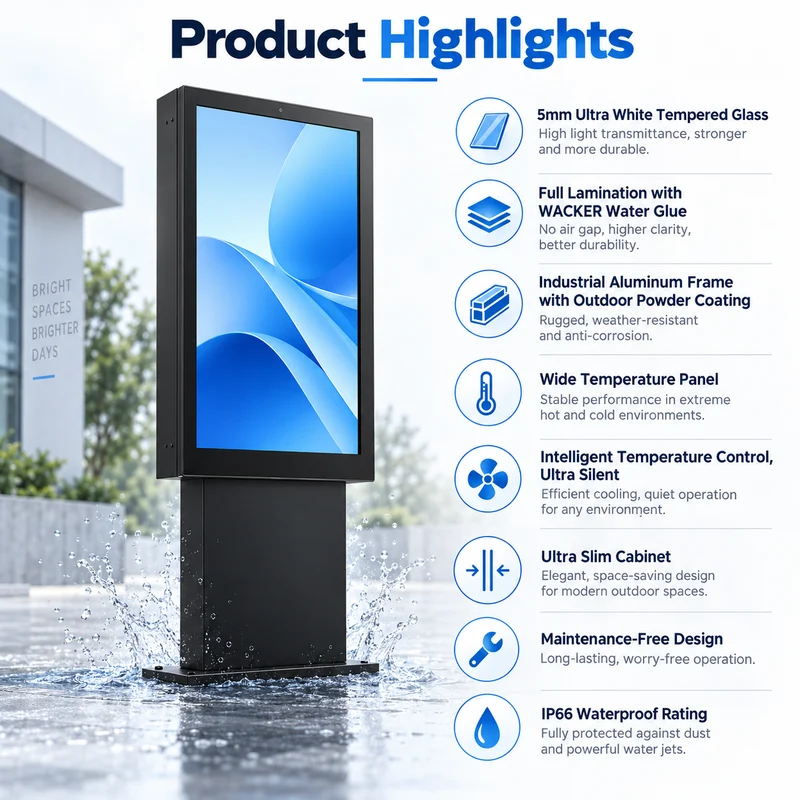

Five Key Features

1. 2500-Nit Sunlight-Readable Display – High-brightness LG or BOE wide-temperature LCD panel provides clear, vivid images for outdoor advertising and information display.
2. IP66 Weatherproof Protection – Sealed slim enclosure protects the display against rain, dust and outdoor environmental exposure.
3. Full Optical Bonding – The LCD panel and 5 mm ultra-clear tempered glass are fully bonded using German WACKER liquid optical adhesive, reducing internal reflections and improving image clarity.
4. Smart and Quiet Temperature Control – Intelligent thermal management maintains stable operation while minimizing fan noise and routine maintenance requirements.
5. Flexible Installation Options – Supports portrait or landscape orientation, with optional wall-mounting bracket, portrait floor stand and capacitive touchscreen configurations.

Product Description

This slim IP66 outdoor LCD digital signage display is designed for high-visibility advertising and information presentation in outdoor and semi-outdoor commercial environments.

The display uses an LG or BOE wide-temperature LCD panel with brightness up to 2500 cd/m². A 5 mm ultra-clear tempered-glass front is fully bonded to the LCD panel using German WACKER liquid optical adhesive, improving image clarity while providing additional protection.

The industrial aluminum front frame is finished with outdoor-grade powder coating. Its sealed, slim enclosure incorporates an intelligent, ultra-quiet temperature-control system for reliable operation under changing environmental conditions.

The display can be installed in either portrait or landscape orientation. Wall-mounted versions are available from 32 to 86 inches, while portrait floor-standing versions are available from 43 to 86 inches. Capacitive touchscreen models are available from 32 to 65 inches.

The standard Android configuration includes an HUIDU HD3568V mainboard with 2 GB RAM and 32 GB internal storage.

Available Options

Screen Size	Non-Touch	Capacitive Touch	Wall-Mount Bracket	Portrait Floor Stand
32 inch	Yes	Yes	Yes	No
43 inch	Yes	Yes	Yes	Yes
49 inch	Yes	Yes	Yes	Yes
55 inch	Yes	Yes	Yes	Yes
65 inch	Yes	Yes	Yes	Yes
75 inch	Yes	No	Yes	Yes
86 inch	Yes	No	Yes	Yes

Installation orientation: Portrait or landscape
Housing color: Standard black; custom colors may be available subject to MOQ.

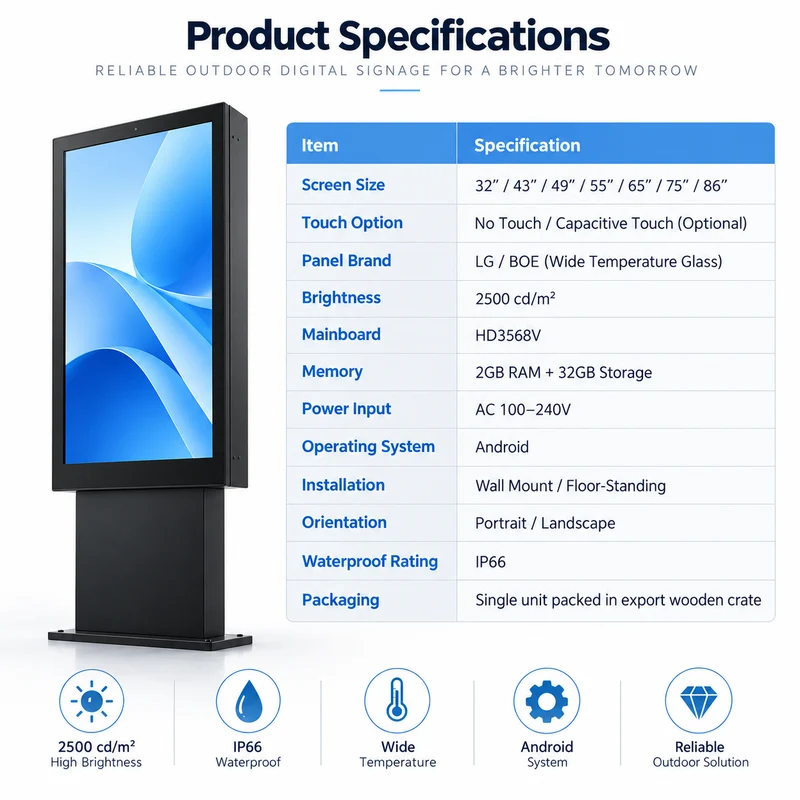

Technical Specifications

Item	Specification
Product Type	Outdoor high-brightness LCD digital signage display
Available Sizes	32", 43", 49", 55", 65", 75" and 86"
LCD Panel	LG or BOE wide-temperature panel
Brightness	2500 cd/m²
Front Glass	5 mm ultra-clear tempered glass
Bonding Process	Full optical bonding
Optical Adhesive	German WACKER liquid optical adhesive
Protection Rating	IP66
Mainboard	HUIDU HD3568V
Memory	2 GB RAM
Storage	32 GB
Operating System	Android 11
Network Connection	Dual-band Wi-Fi and Gigabit Ethernet
Interface	LVDS / eDP / V-by-One,  HDMI IN
Input Voltage	AC 100–240V, 50/60Hz
Frame Material	Industrial aluminum
Surface Finish	Outdoor-grade powder coating
Temperature Management	Intelligent temperature-control system
Installation Orientation	Portrait or landscape
Touch Option	Optional capacitive touchscreen, 32–65 inches
Mounting Options	Wall-mount bracket or portrait floor stand
Enclosure Design	Slim, sealed and low-maintenance
Heat-Resistant Materials	Selected materials rated up to 105°C
Packing	One unit per export wooden crate

Note: Overall dimensions, resolution, power consumption and packing specifications vary by screen size and configuration. Please contact us for the corresponding technical drawing.

Size Options

Screen Size	Model	Resolution	Display Body Dimensions*	Net Weight	Maximum Power
32"	FSOD320	1920 × 1080	763 × 457 × 95.5 mm	20 kg	120W
43"	FSOD430	1920 × 1080	1,014 × 602 × 95.5 mm	31 kg	180W
49"	FSOD490	1920 × 1080	1,147 × 677 × 95.5 mm	40 kg	200W
55"	FSOD550	1920 × 1080	1,282 × 753 × 95.5 mm	49 kg	280W
65"	FSOD650	3840 × 2160	1,500 × 875 × 95.5 mm	65 kg	520W
75"	FSOD750	3840 × 2160	1,748.5 × 1,026.5 × 95.5 mm	95 kg	680W
86"	FSOD860	3840 × 2160	2,013.5 × 1,183.5 × 95.5 mm	155 kg	1,160W

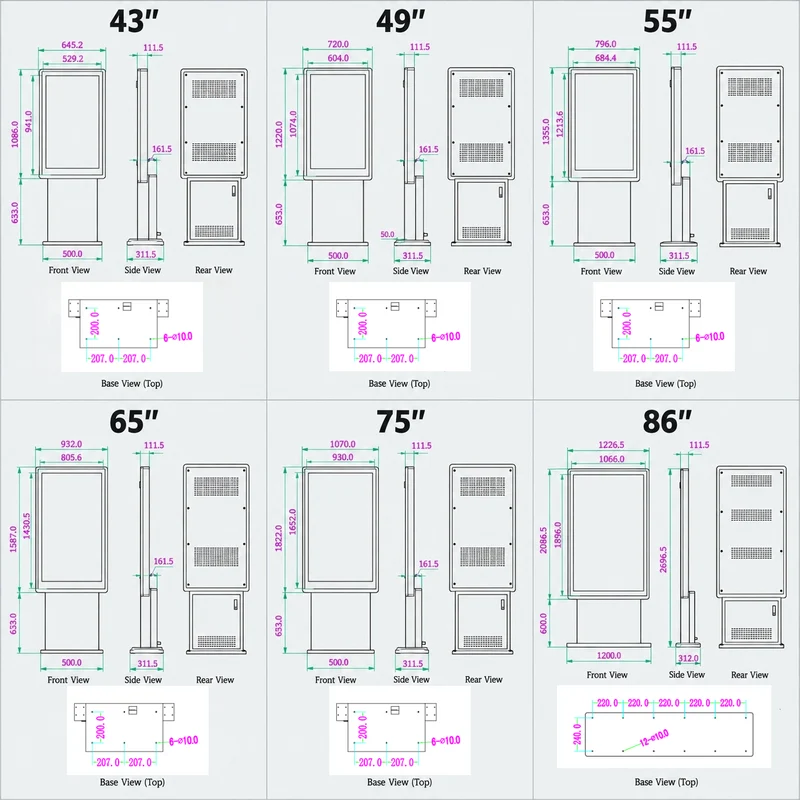

*Display body dimensions exclude the floor stand and are shown in landscape orientation. For landscape floor-standing dimension, please refer to picture.

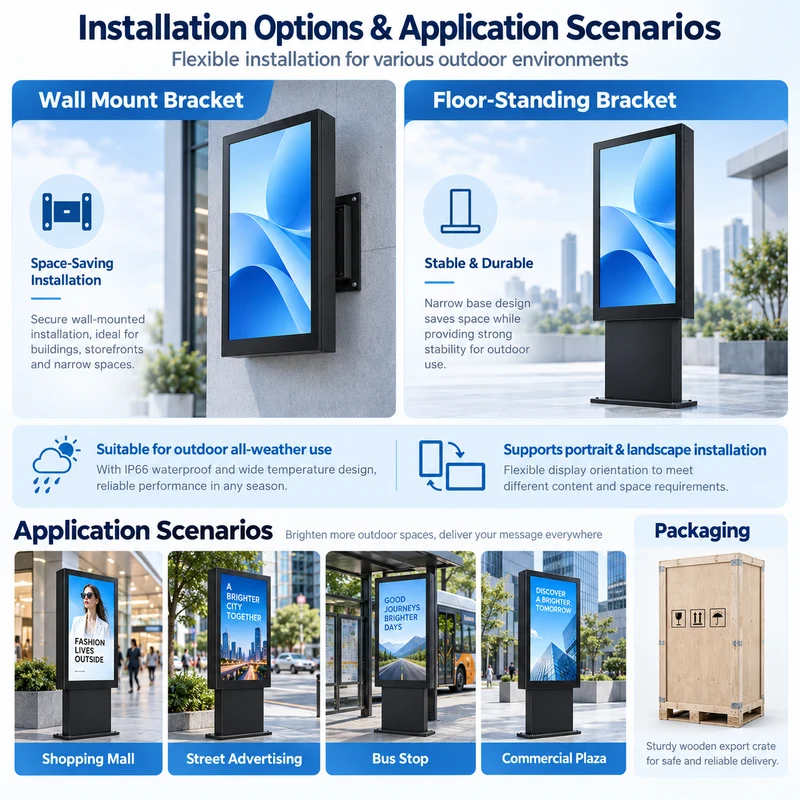

Installation Options

Wall-Mounted

Available for all screen sizes from 32 to 86 inches. The display can be installed vertically or horizontally, subject to the selected bracket and site structure.

Portrait Pedestal-Mounted Installation

Available in 43", 49", 55", 65", 75" and 86" sizes. For outdoor installation, the pedestal base must be securely bolted to a suitable concrete foundation.

Capacitive Touchscreen

Available for 32, 43, 49, 55 and 65-inch models. Suitable for outdoor directories, interactive information terminals and self-service applications.

Typical Applications

• Outdoor retail advertising
• Shopping centers and commercial plazas
• Restaurant menu boards
• Hotel and resort entrances
• Transportation hubs
• Outdoor information kiosks
• Corporate and campus wayfinding
• Tourist attractions
• Public information displays
• Interactive directories and self-service terminals

Production Lead Time

Material Availability	Estimated Production Time
Materials in stock	10–15 days
Materials not in stock	Approximately 25 days

Estimated Transportation Time

Shipping Method	Estimated Transit Time
Air shipping	12–18 days
Sea shipping	35–40 days to US, 55-60 days to EU

Production and transportation times are estimates. Actual timing may vary according to screen size, configuration, order quantity, destination and customs clearance.

Package Includes

• Outdoor LCD digital signage display
• Selected wall-mount bracket or portrait floor stand
• AC power connection
• Export wooden crate

Ordering Information

Before ordering, please confirm:

1. Required screen size
2. Touch or non-touch version
3. Wall-mounted or floor-standing installation
4. Portrait or landscape orientation
5. Installation location and environment
6. Delivery address
7. Required quantity

Custom structures and configurations can be evaluated according to your project requirements.
