Lightweight HKN Series Outdoor LED Display with Pixel Pitch Options 2.91mm and 3.91mm, Ideal for Trailer Display

HKN Series Outdoor LED Display

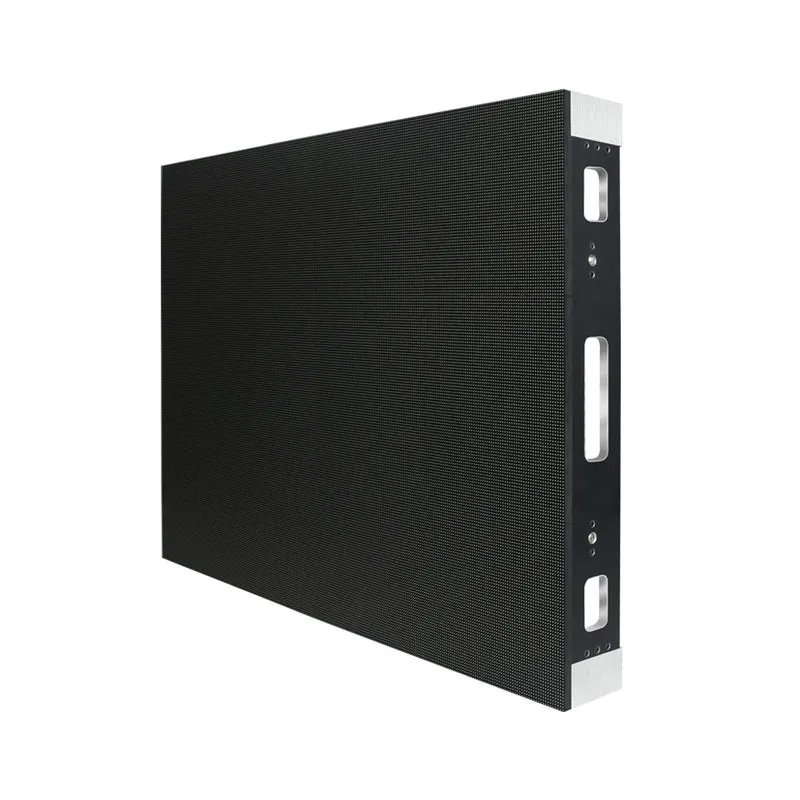

This newly designed Outdoor LED screen is made with high quality robust aluminum profile frame, available in multiple LED panel size of 1000 x 750mm, 500 x 750mm, easy for using to make large screen video wall outdoor. With pixel pitch options 2.976mm and 3.91mm, this LED display for outdoor can reach up to brightness of 6000 cd/sqm. By using high quality ICs and LEDs, this FN series Outdoor LED can produce exceptional and vivid images.

HKN series Outdoor LED Display Screen Parameters

• Completed IP65 Waterproof Level for Panel
• P2.9 and P3.9 Pixel Pitches Options
• High Brightness up to 6000cd/sqm fit for most outdoor display slolution request
• Using Robust Aluminum Profile Material in Frame
• New module designed for easy maintenance
• Dual Service Maintenance for Panel
• Two Stepes Quickly Featured Installation Method
• High Refresh Rate & Contrast Ratio that assure high quality image display

HKN Series Outdoor LED Display

HK-Pro Series
HK-Pro Series	HKN290	HKN390
Pixel Pitch	2.976 mm	3.91 mm
LED Configuration	SMD1415	SMD1921
Module Size（WxH) (mm)	250 x 250	250 x 250
Module Resolution (dots)	84×84	64 x 64
Pixel Density(dots/㎡)	112896	65536
Panel Dimension (mm)	1000x750x110 mm	1000x750x110 mm
Panel Resolution (H x V)	336 x 252	256 x 192
Max. Brightness	6000nits	6000nits
Weight Per Panel	25.0 kg	25.0 kg
Power Consumption  (Avg)(W/㎡)	300	285
Power Consumption  (Max)(W/㎡)	900	850
Viewing Angle Vertical	150°	150°
Viewing Angle Horizontal	150°	150°
Refresh Rate	3840Hz	3840Hz
Gray Scale(level)	16 bit	16 bit
Driving Mode(Scan)	14	8
Frame Material	Aluminum Profile	Aluminum Profile
Maintenance Method	Front & Rear	Front & Rear
Operational Temp / Humidity	-20°-50°C, 10-90% RH	-20°-50°C, 10-90% RH
	-4°-122°F, 10-90% RH	-4°-122°F, 10-90% RH
IP Rating	Outdoor	Outdoor
