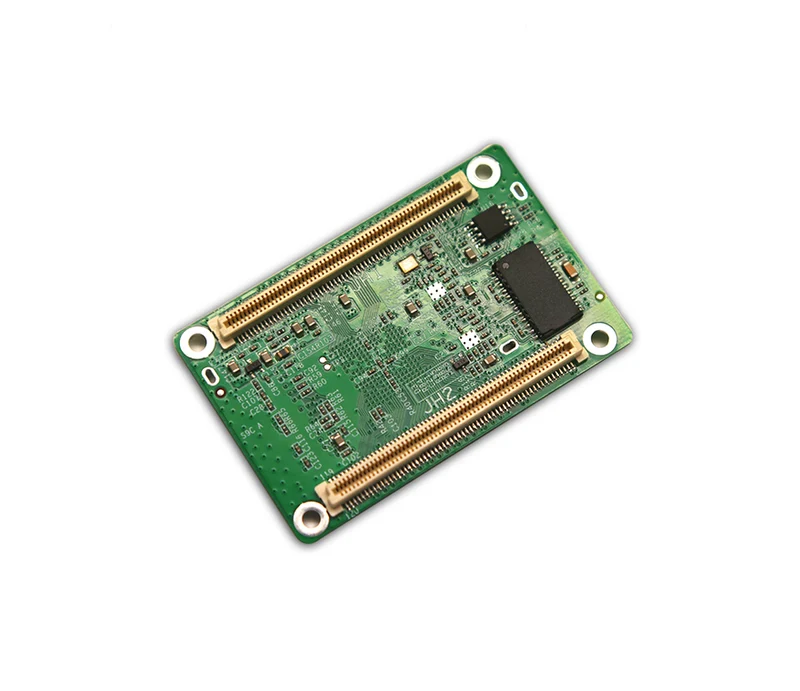

NovaStar A5s Plus Receiving Card – 512×384 Pixels | HDR‑Optimized Compact LED Display Controller Board for LED Display Screens

NovaStar A5s Plus Receiving Card – 512×384 Pixels | HDR‑Optimized Compact LED Display Controller Board for LED Display Screens

Package Included

Version	Package Included
A5s Plus	1 × Novastar A5s Plus LED Receiving Card

About this item

• High-performance LED screen controller supporting up to 512×384 pixels
• Compatible with multiple LED module pixel pitches for enhanced flexibility
• Advanced features such as pixel-level brightness & chroma calibration and image rotation for improved visual quality
• Compact design with high-density connectors for stable, long-term reliability
• Ideal for indoor/outdoor fixed installations, rental displays, and creative LED setups

Order & Logistics

• Lead Time: Typically ships within 2–5 business days
• Packing: Cardboard box
• Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）

Key Specifications

• Input Ports: High-density connector
• Output Ports: 32 parallel RGB groups / 64 serial groups
• Supported Resolutions: Up to 512×384 pixels
• Control Method: Network connection via NovaLCT & NovaCLB software
• Power Supply: Standard low-voltage DC (via LED cabinet supply)
• Operating Temperature: Not specified by manufacturer

Usage Notes / Installation Tips

• Always power off before connecting/disconnecting signal cables
• Use shielded network cables for stable data transmission
• Ensure adequate ventilation for prolonged operation

Technical Specifications

Model	A5s Plus	A8s-N	A10s Plus-N
Loading capacity	512×384	512×384	512×512
Parallel RGB data groups	32	32	32
Serial data groups	64	64	64
HDR	×	√	√
Mapping	√	√	√
Temperature, voltage & communication monitoring	√	√	√
Dual-card backup	√	√	√
Automatic calibration	√	√	√
Pixel-level brightness & chroma calibration	√	√	√
Calibration coefficient backup	×	√	√
Firmware program readback	√	√	√
Individual gamma adjustment for RGB	√	√	√
18bit+	√	√	√
22bit+	×	√	√
Precise grayscale	×	√	√
Color management	√	√	√
Full grayscale calibration	×	×	×
Shutter fit	×	×	×
Dynamic booster	×	×	×

Applications

• Fixed LED billboards
• Rental stage LED screens
• Indoor/outdoor advertising
• Conference / exhibition displays

Description

Novastar A5s Plus LED Receiving Card
Download SPECIFICATION and FIRMWARE
(Note A5s is replaced by A5s Plus)
