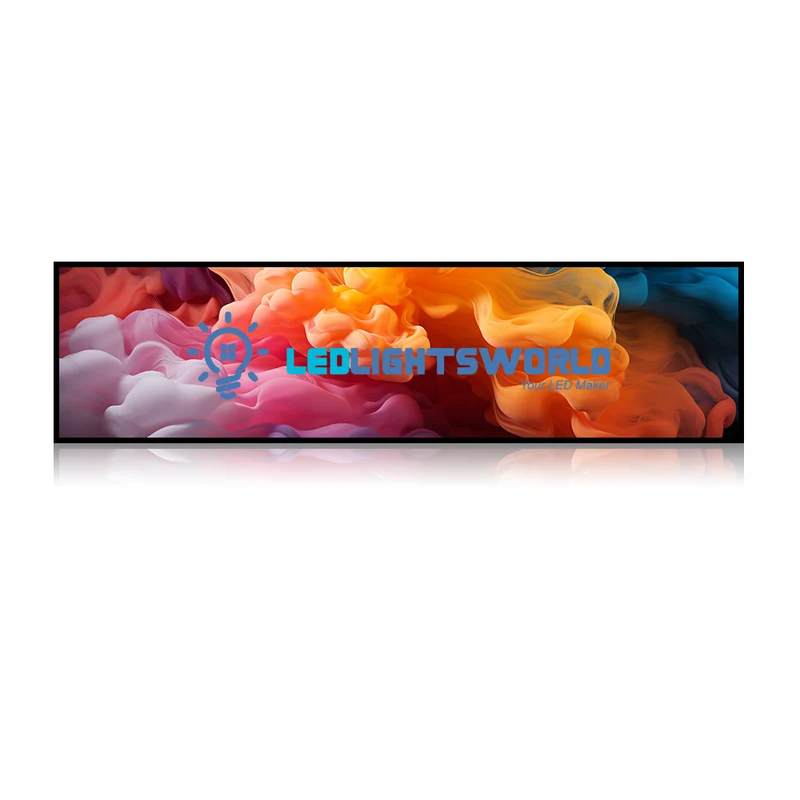

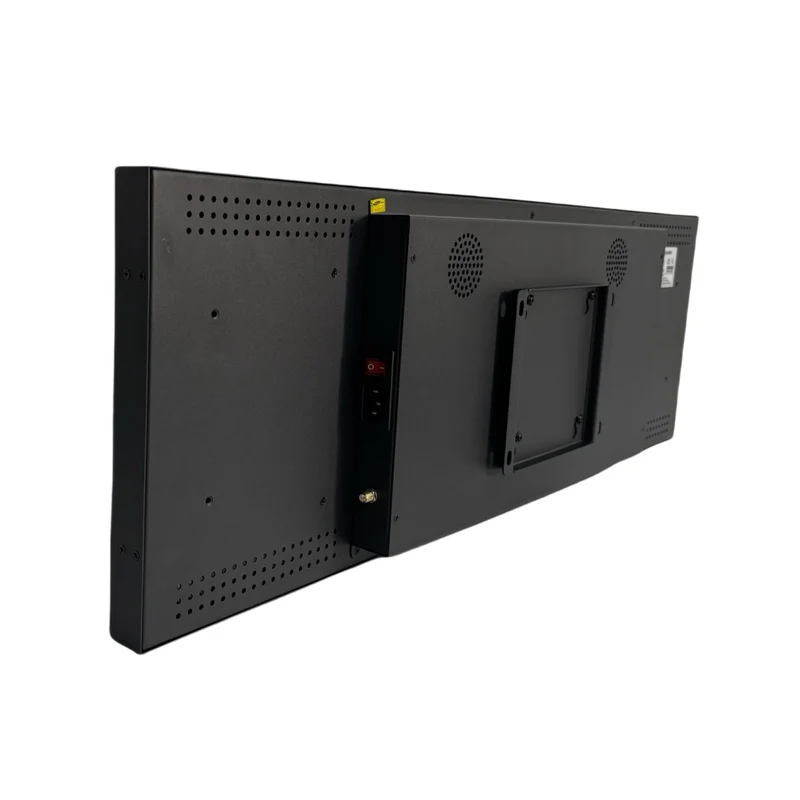

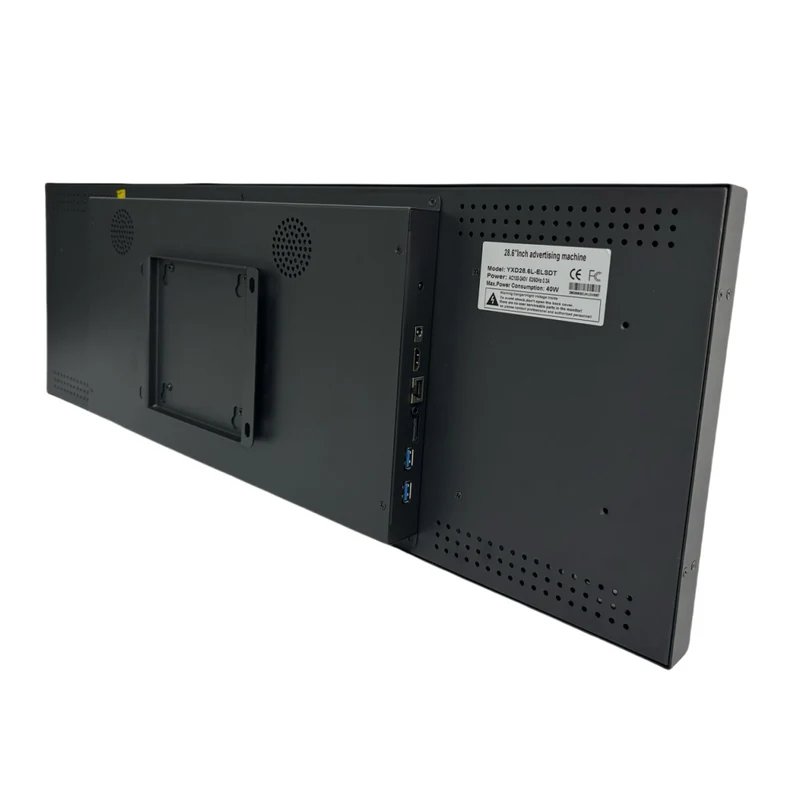

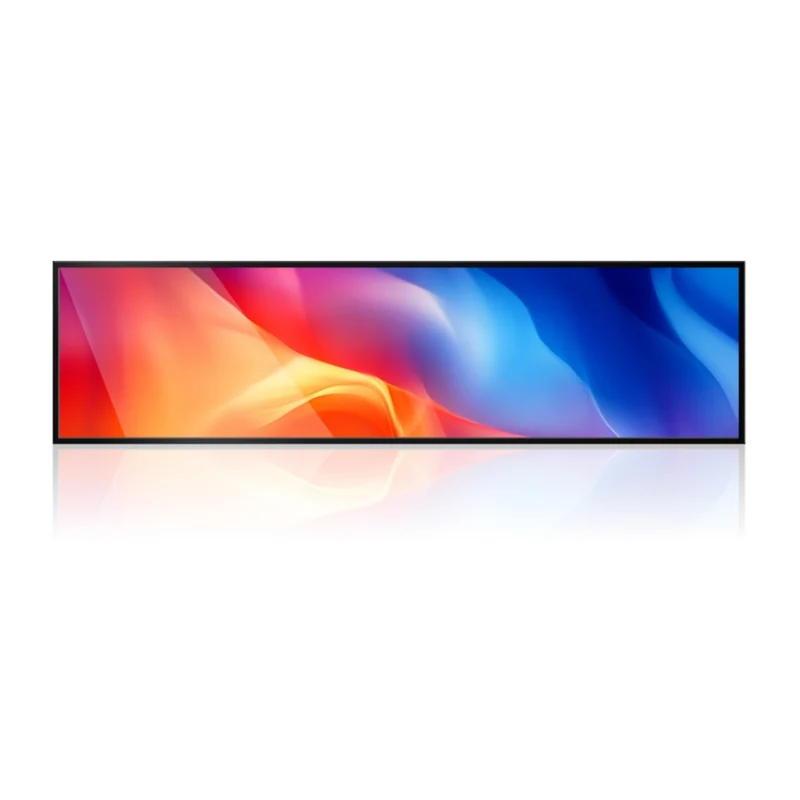

28.6 Inch (698.4×203.7mm Viewable) Ultra-Wide Android LCD Shelf Screen | Stretched Bar Digital Signage w/ Optional Touch | Cloud / USB / App Control

28.6 Inch (698.4×203.7mm Viewable) Ultra-Wide Android LCD Shelf Screen | Stretched Bar Digital Signage w/ Optional Touch | Cloud / USB / App Control

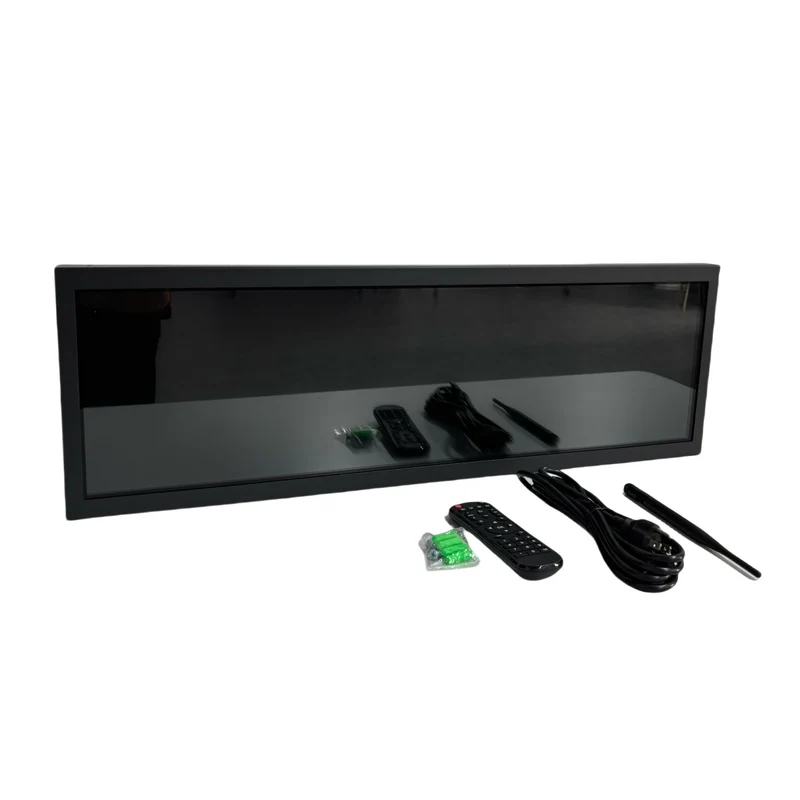

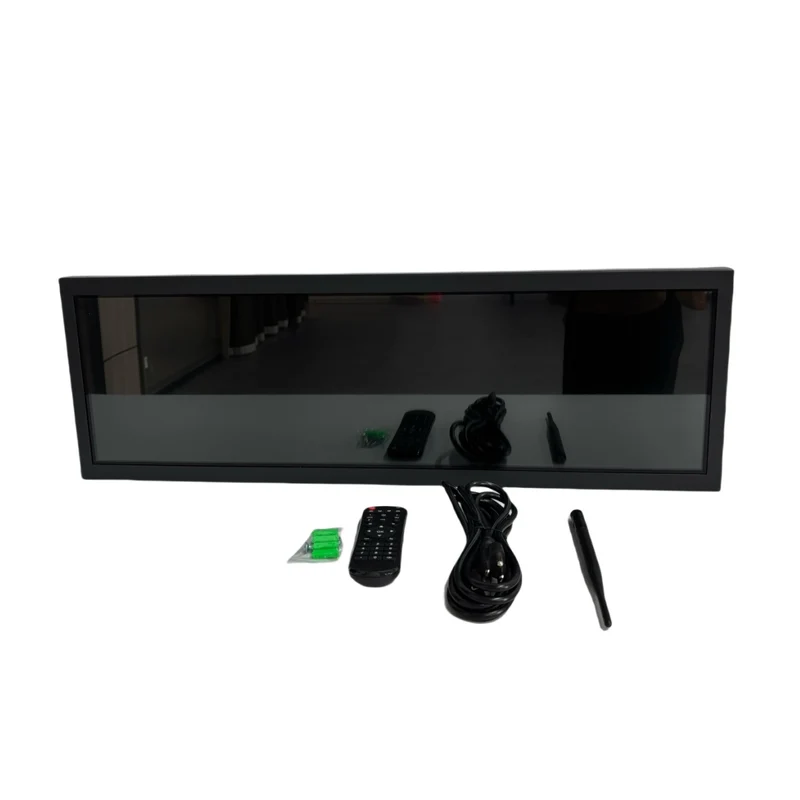

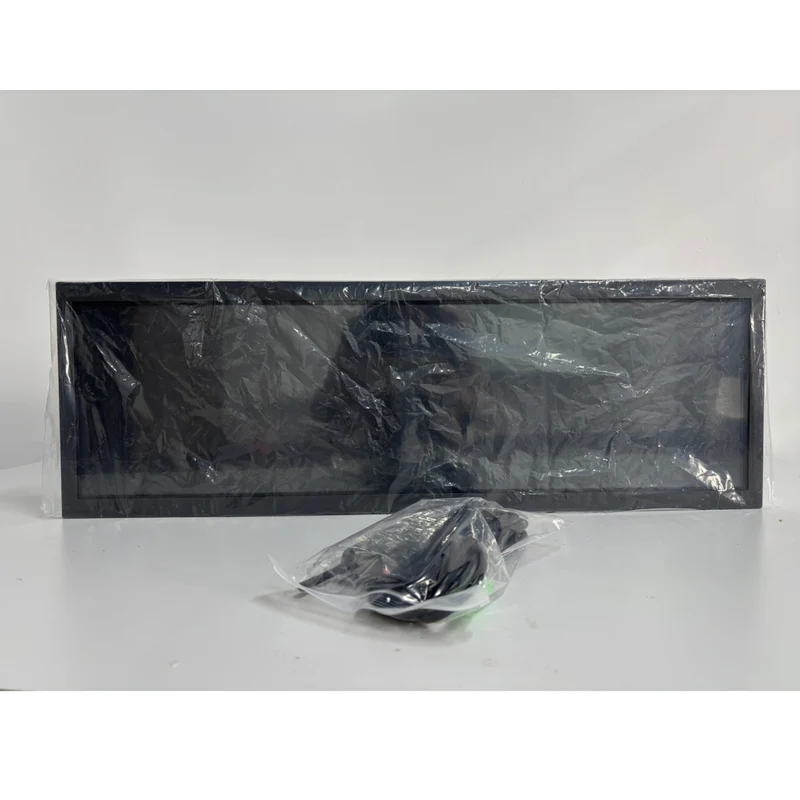

Package Included

Version	Package Included
TXp-28.6''	1 × 28.6'' LCD Screen 1 × Power Plug Cable 1 × Remote Controller (Battery not included) 1 × Mounting Screws & Expansion Tubes 1 × Honeycomb Cardboard Box for Packing

About this item

• Ultra-wide 28.6'' LCD bar screen with Android 11 OS, using LED backlight for uniform brightness and wide color gamut
• Industrial-grade design with ultra-high reliability, average trouble-free operation >50,000 hours
• RK3568 quad-core CPU, Mali-G52 GPU, supports AFBC, 4K/H.265 decoding, 1080P video playback, and 4K-level video display
• Interfaces: Infrared remote control, RJ45, USB, OTG, HDMI out, TF card, DC-IN
• High resolution 1920×540, brightness 500 cd/m², contrast ratio 1200:1, viewing angle 178°, color display 16.7M
• Optional capacitive touch for interactive applications
• Widely used in retail shelves, shopping malls, exhibitions, airports/metro/bus stations, and creative installations

Order & Logistics

• Lead Time: If stock is available, ships within 5 business days. For models requiring production, the typical lead time is 10–15 business days.

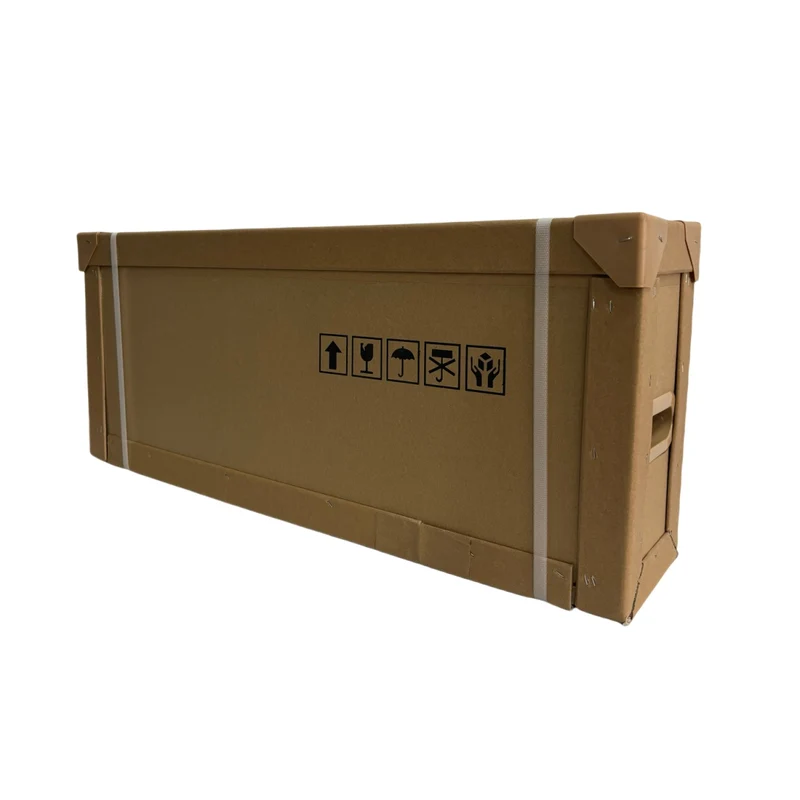

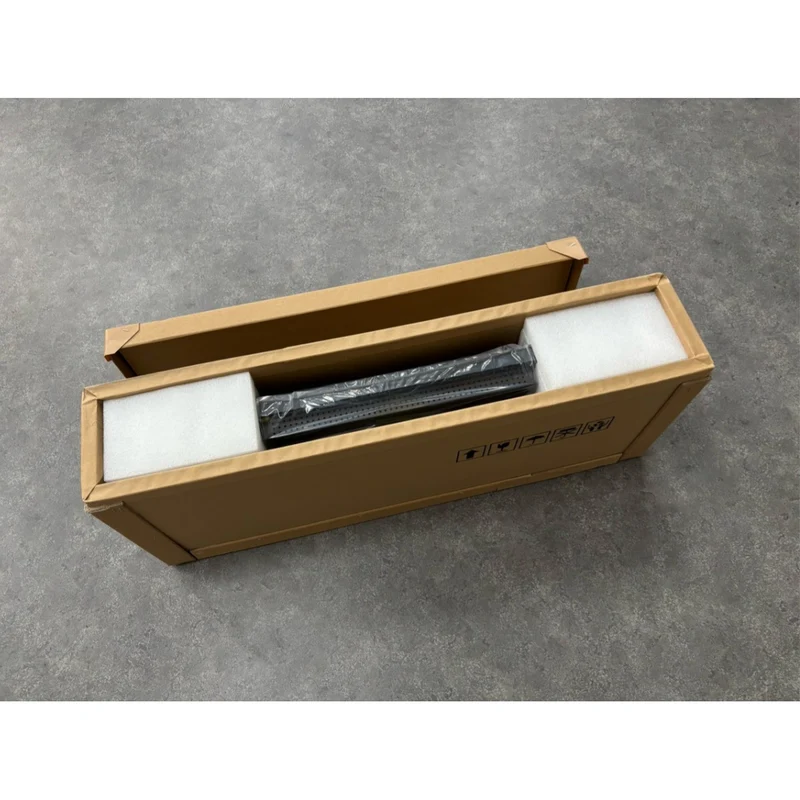

• Packing: Hard carton with protective inner foam.
• Shipping:
• Free Freight (DDP): 10–20 days (Air + Ground) — economy air shipping, freight already included in product pricing.
• Priority Freight (DDP): 7–15 days (Air + Ground) — faster delivery option at checkout.
• DDP Terms: Customs clearance, duties, and taxes are included. If DDP service is not available in your destination country, we will coordinate alternative terms (e.g., EXW / FOB) with you to ensure smooth delivery.

Key Specifications

Parameter	Value
Screen Vendor	LG
Resolution	1920×540

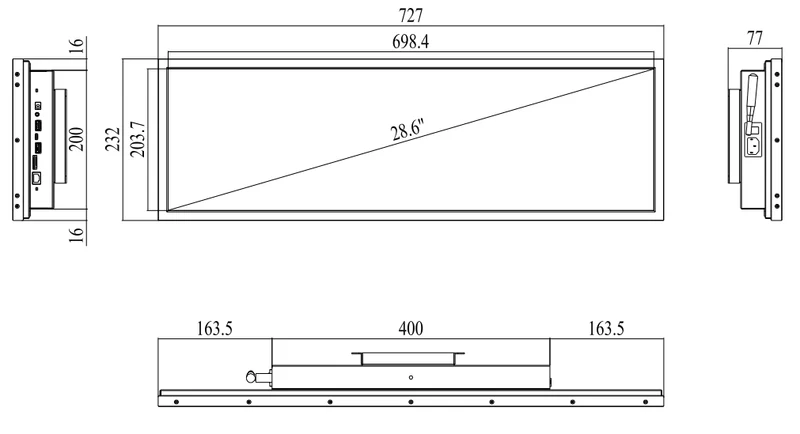

Display Size (mm)	698.4(H)×203.7(V)
Brightness	500 cd/m²
Contrast	1200:1
Viewing Angle	178°
Response Time	8 ms (typ.)
Display Color	16.7M
Control Board	RK3568 Quad-Core ARM Cortex-A55 1.8GHz, Mali-G52 GPU
RAM	2G
ROM	16G
System	Android 11
Audio	Optional Speaker
Touch	IR Touch Optional

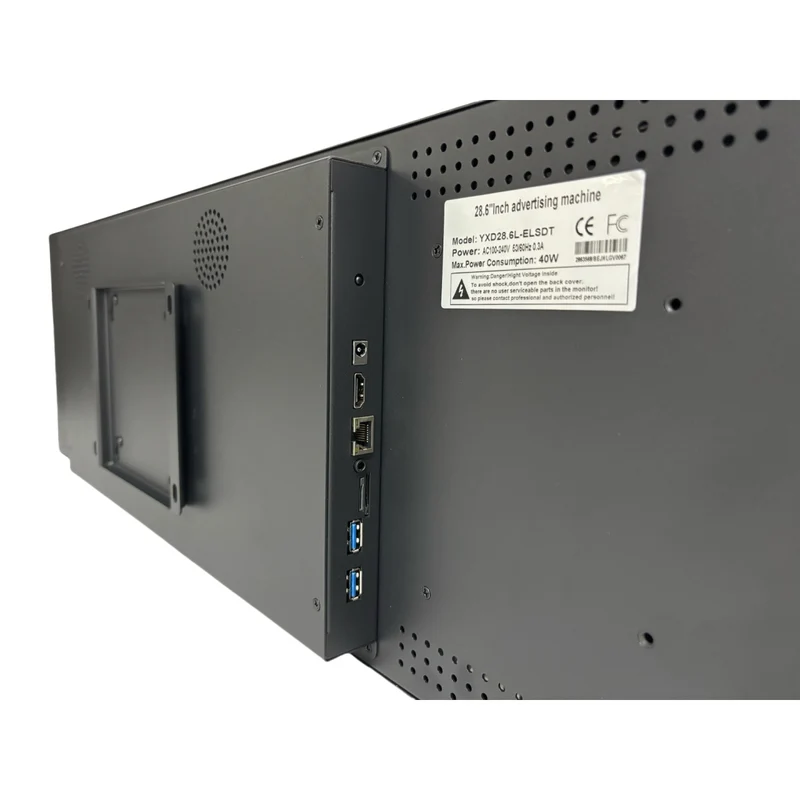

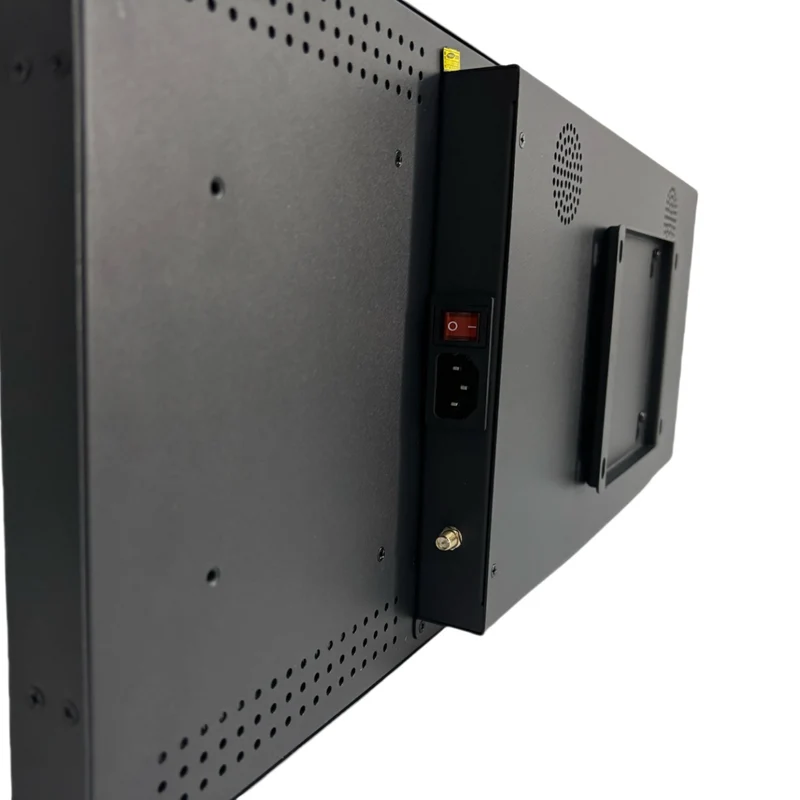

Interface	USB3.0, OTG, TF-card, Audio, RJ45, HDMI out, DC-IN
Net Weight	≈15 kgs
Housing	727*232*77mm, Iron Metal Sheet
Power	AC110-220V 50-60Hz, ≤40W, Standby <1W
Operating Temp	0℃～+50℃
Operating Humidity	10%～90% RH Non-Condensing

Usage Notes / Operation Tips

• Remote Controller can be used as auxiliary control
• How to rotate the screen
• Send via "LEDArt" APP (YouTube)
• Send program to LCD via LEDArt (Shorts)
• Play via U-Disk / SD Card (YouTube)

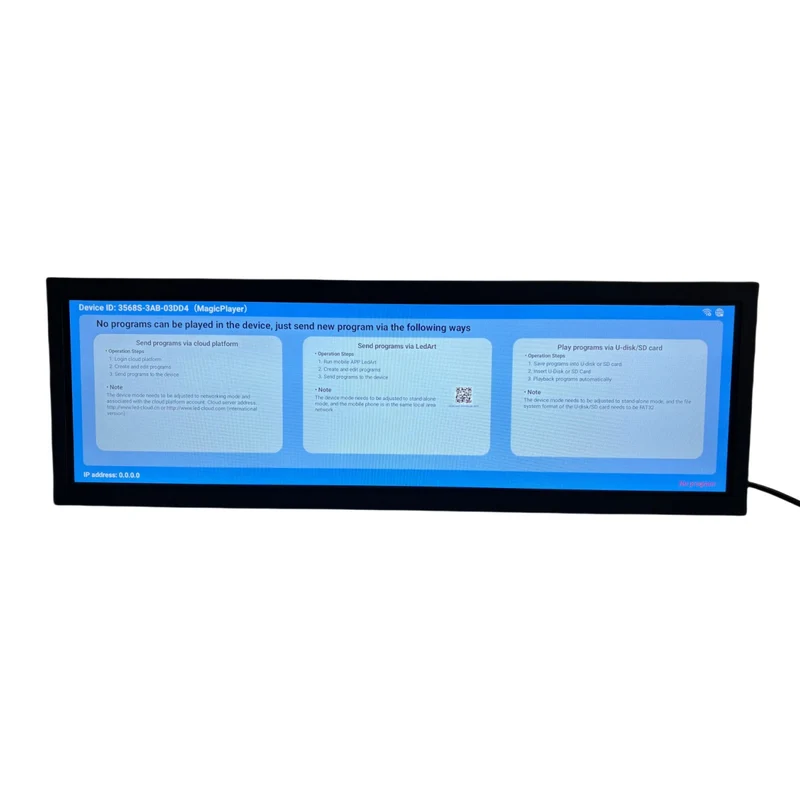

Content Upload & Operation Steps

Send Program via Cloud Platform	Send Program via LEDArt	Play Program via U-disk / SD card
① Login cloud platform ② Create and edit programs ③ Send programs to the device Notes: Device mode: Networking mode; associate with cloud platform account.	① Run LEDArt mobile app ② Create and edit programs ③ Send program to the device Notes: Device mode: Stand-alone mode; phone on the same local network.	① Save programs to U-disk / SD card ② Insert U-disk / SD card ③ Auto playback Notes: Device mode: Stand-alone mode; format media as FAT32.

Applications

• Retail shelf-edge displays
• Shopping mall signage
• Exhibition & trade show displays
• Airport / metro / bus station information boards
• Creative installations & advertising walls

Downloads

• Datasheet of 28.6'' Stretched Bar LCD Screen
• Send via "LEDArt" APP (YouTube)
• Send program to LCD via LEDArt (Shorts)
• Play via U-Disk / SD Card (YouTube)
• Remote Controller (YouTube)
• How to rotate the screen (YouTube)
• How to set fixed IP address (YouTube)
• How to upgrade MagicPlayer (YouTube)
• How to splice multiple screens via XIAOHUI cloud (YouTube)
