88 Inch (2158.85×600mm Viewable) Extra-Large Ultra-Wide Android LCD Bar Display | Stretched Shelf Screen | Cloud Platform, USB & App Control

88 Inch (2158.85×600mm Viewable) Extra-Large Ultra-Wide Android LCD Bar Display | Stretched Shelf Screen | Cloud Platform, USB & App Control

Package Included

Version	Package Included
TXP-88''	LCD Bar Display ×1, Power Adapter ×1, Remote Controller (Optional) ×1, Mounting Screws & Expansion Tubes ×1, Honeycomb Cardboard Box ×1

About this item

• 88" ultra-wide Android LCD bar screen, ideal for retail shelves, signage, and exhibitions
• High-resolution 3840×1080, 500 cd/m² brightness, 178° viewing angle for crisp images
• RK3568 quad-core CPU, 2+32 GB memory, Android 11, supports 4K/H.265 and 1080P decoding
• Content upload via Cloud Platform, LEDArt App, or U-Disk / SD Card
• Optional capacitive touch and Remote Controller for interactive use

Order & Logistics

• Lead Time: If stock is available, ships within 5 business days. For models requiring production, the typical lead time is 10–15 business days.
• Packing: Hard carton with protective inner foam.
• Shipping:
• Free Freight (DDP): 10–20 days (Air + Ground) — economy air shipping, freight already included in product pricing.
• Priority Freight (DDP): 7–15 days (Air + Ground) — faster delivery option at checkout.
• DDP Terms: Customs clearance, duties, and taxes are included. If DDP service is not available in your destination country, we will coordinate alternative terms (e.g., EXW / FOB) with you to ensure smooth delivery.

Specifications

Specification	Value
Model #	TXP-88''
Screen Vendor	LG
Resolution	3840×1080
Display Size	2158.9×607 mm
Brightness	500 cd/m²
Contrast Ratio	1200:1
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Response Time	8 ms
Display Color	16.7M
Refresh Rate	60 Hz
CPU	RK3568 Quad-core Cortex-A55, 2.0GHz
GPU	Mali-G52
RAM / ROM	2 GB / 32 GB
System	Android 11
Interfaces	USB3.0, OTG, TF-card, Audio, RJ45, HDMI in
Audio	Speaker (Optional)

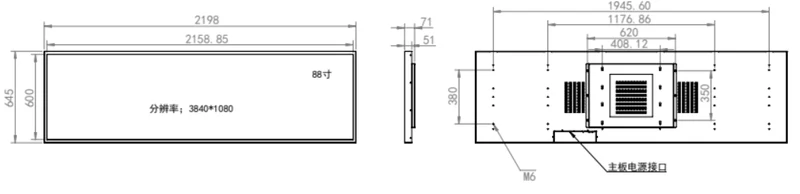

Dimensions	2198×645×71 mm
Housing Material	Metal Sheet
Power Input	AC100-240V 50-60Hz
Power Consumption	≤160W (Standby <1W)
Operating Temp.	0℃–50℃
Operating Humidity	10%–90% RH Non-condensing
Storage Temp.	-20℃–60℃
Storage Humidity	5%–95% RH Non-condensing
OSD Languages	English / Chinese
Touch Screen	Capacitive Touch Screen Optional
Data Sheet	88 inch LCD screen (PDF)

Usage Notes / Operation Tips

Send Program via Cloud Platform	Send Program via LEDArt	Play Program via U-disk / SD Card
① Login cloud platform ② Create and edit programs ③ Send programs to the device Notes: Device mode: Networking mode; associate with cloud platform account.	① Run mobile APP LEDArt ② Create and edit programs ③ Send program to the device Notes: Device mode: Stand-alone mode; phone on the same local network.	① Save programs to U-disk / SD Card ② Insert U-Disk / SD Card ③ Auto playback Notes: Device mode: Stand-alone mode; format media as FAT32.

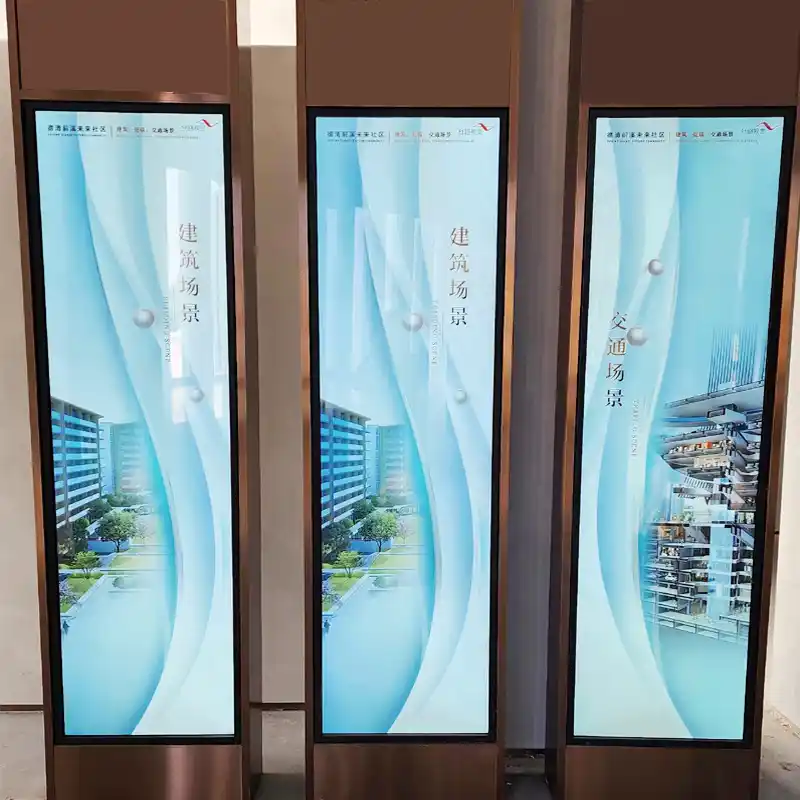

Applications

• Retail shelf-edge displays
• Shopping mall signage
• Exhibition & trade show displays
• Airport / metro / bus station information boards
• Creative installations & advertising walls

Downloads

• 88 inch LCD screen (DOWNLOAD DATASHEET)
• HUIDU Cloud Plate Form Content Management Software Manual
• Send via "LEDArt" APP
• Send program to LCD display screen by HUIDU Mobile APP LEDArt (YouTube Shorts)
• Play via U-Disk/SD Card
• Remote Controller
• How to rotate the screen !
• How to set fixed IP address !
• How to upgrade MagicPlayer
• Splice Multiple LCD Digital Signages On XiaoHui Cloud
