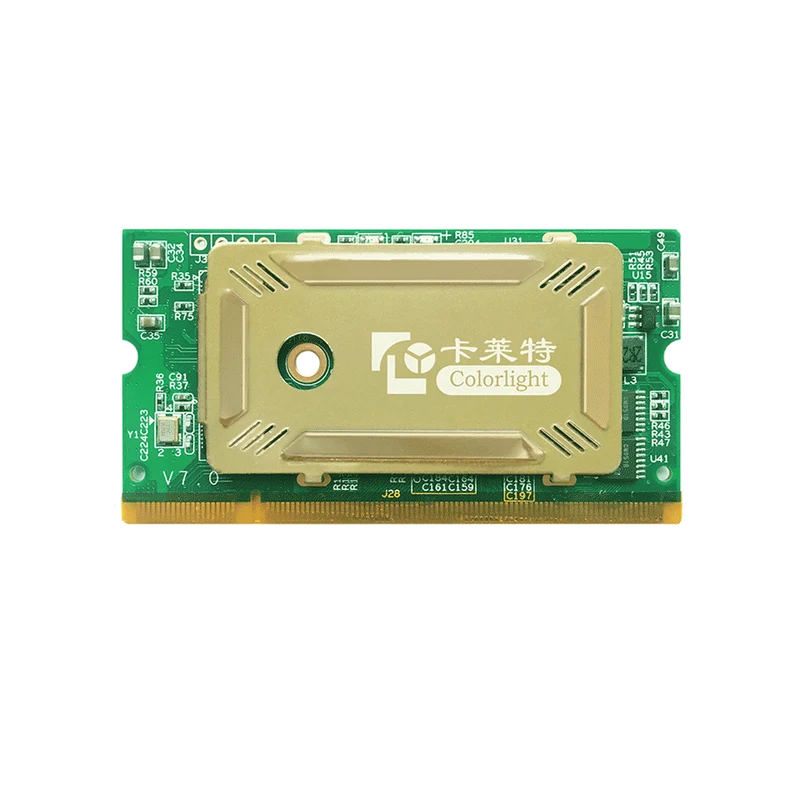

Colorlight i5+ Receiving Card for LED Display Screen

Colorlight i5+ Receiving Card for LED Display Screens – 512×384 Pixels | Compact DDR2 SODIMM Interface with 32 Data Groups

Package Included

Version	Package Included
i5+	1× i5+ Receiving Card 1× Antistatic Bag 1× User Manual

About this item

• High-end receiving card for fine-pitch LED screens; supports up to 32 parallel or 32 serial RGB data groups
• Compact form factor; DDR2 SODIMM interface integrates with HUB boards and LED display modules for flexible designs
• Per-card loading capacity up to 512×384 pixels; dynamic frame rate 23.976–240 Hz
• Grayscale refinement, independent gamut adjustment, low latency, automatic OSD, loop backup, and smart module support
• Compatible with irregular displays; supports cabinet monitoring and network cable detection
• Ideal for concise cabinets in fixed installations, rental LED walls, and creative LED setups

Order & Logistics

• Lead Time: Typically ships within 2–5 business days
• Packing: Cardboard box
• Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）

Key Specifications

• Interface: DDR2 SODIMM (receiving card to HUB/module)
• RGB Data Groups: Up to 32 parallel or 32 serial
• Supported Resolution (per card): Up to 512×384 pixels
• Control Method: Connected via sender/controller over network within LED system
• Power Supply: DC 3.3 V (provided by LED cabinet/system)
• Operating Temperature: As per manufacturer standard

Usage Notes / Installation Tips

• Always power off the LED system before installing or removing the receiving card
• Use shielded network and ribbon cables for stable signal transmission
• Ensure adequate ventilation inside the LED cabinet for prolonged operation
• Use anti-static protection when handling; avoid ESD exposure

Technical Specifications

Model	i10	i9+	i8	i5+
Loading Capacity (pixels)	512×512	512×512	512×384	512×384
RGB Parallel Data Groups	32	32	32	32
Color Depth	8-bit / 10-bit / 12-bit	8-bit / 10-bit	8-bit / 10-bit	8-bit / 10-bit
Dynamic Frame Rate	23.976–240 Hz	23.976–240 Hz	23.976–240 Hz	23.976–240 Hz
Grayscale Refinement	√	√	√	√
Multi-layer Calibration	√	√	✘	✘
Infi-bit	√	√	√	✘
Independent Gamut Adjustment	√	√	√	√
HDR	√	√	√	✘
Low Latency	√	√	√	√
Automatic OSD	√	√	√	√
Loop Backup	√	√	√	√
Receiving Card Backup	√	√	√	√
Calibration Coefficient Backup	√	✘	√	✘
Configuration Parameter Backup	√	✘	√	✘
Smart Module	√	√	√	√
Irregular Display	√	√	√	√
Cabinet Monitoring	√	√	√	√
Network Cable Detection	√	√	√	√

Applications

• Fixed LED billboards
• Rental stage LED screens
• Indoor/outdoor advertising screens
• Conference / exhibition LED displays
