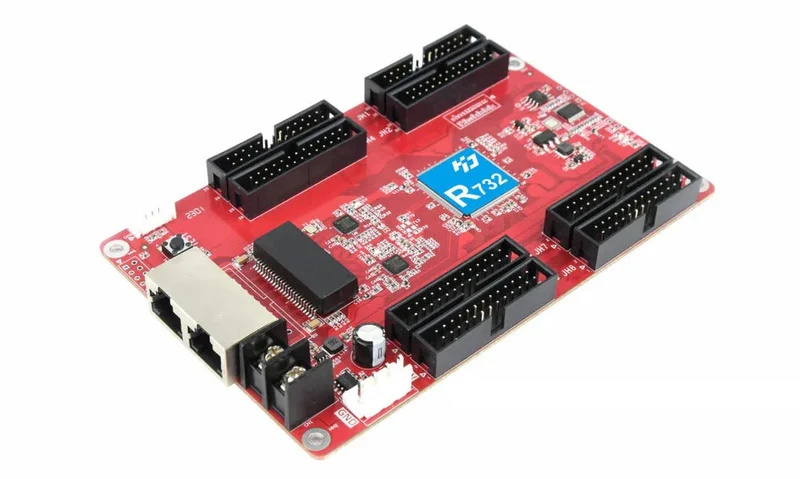

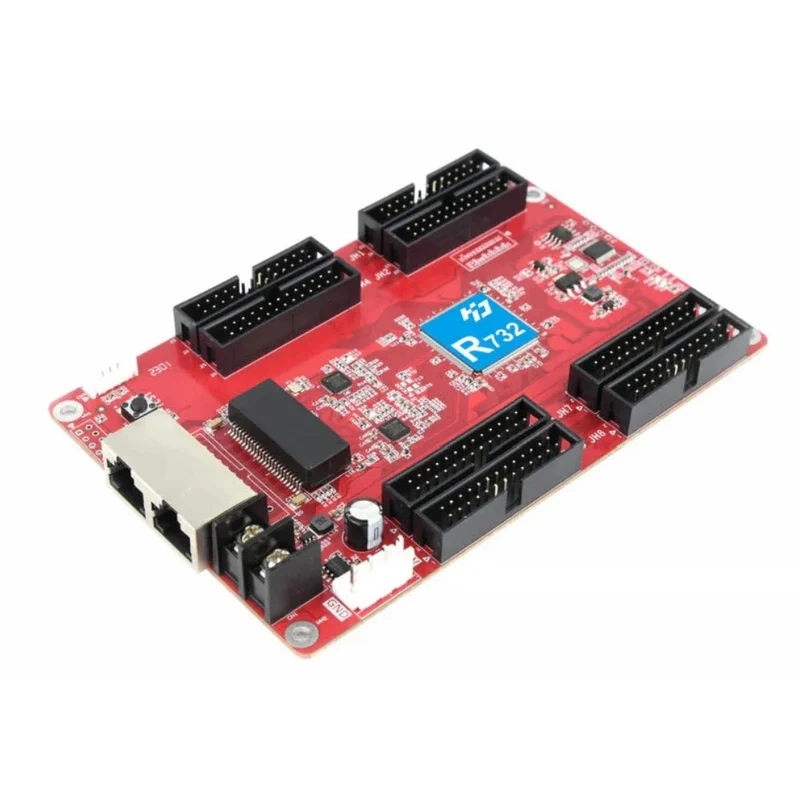

Huidu HD-R732 Receiving Card – 128×1024 Pixels | HUB320 | LED Screen Receiver Card with High Refresh and Wide IC Support for LED Display Screens

Huidu HD-R732 Receiving Card – 128×1024 Pixels | HUB320 | LED Screen Receiver Card with High Refresh and Wide IC Support for LED Display Screens

Package Included

Version	Package Included
HD-R732	HD-R732 receiving card

About this item

Features	Parameters
Fit for sender	Dual-mode Player box, Asynchronous controller, Synchronous sending card, 3 in 1 Video processor
Module type	Compatible with all common IC module, supported most PWM IC module.
Scan mode	Supports any scanning method from static to 1/128 scan
Communication method	Gigabit Ethernet
Control range	Max Recommend：262,144 pixels (256*1024) Note: P1.538 and P1.25 can be fully loaded with 8 ports
Multi-card connection	Receiving card can be put in any sequence
Gray scale	256~65536
Smart setting	A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board
Test functions	Receiving card integrated screen test function, Test display brightness uniformity and display module flatness.
Communication distance	Super Cat5,Cat6 network cable within 80 meters
Port	5V DC Power*2,1Gbps Ethernet port*2, HUB320*8
Input voltage	4.0V-5.5V
Power	5W

Order & Logistics

• Lead Time: Typically ships within 2–5 business days
• Packing: Cardboard box
• Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.

Specification

Model	HD-R716	HD-R712	HD-R708	HD-R732	HD-R3210
Loading capacity	Conventional chip: 160*1024 PWM chip: 320*1024	Conventional chip: 128*1024 PWM chip: 256*1024	Conventional chip:  128*512 PWM chip: 256*512	Conventional chip: 128*1024 PWM chip: 256*1024	Conventional chip: 512*512
HUB interface	16×HUB75E	12×HUB75E	8×HUB75E	8×HUB320	10×HUB320
Data output	32 group of RGB	24 group of RGB	16 group of RGB	32 group of RGB	40 group of RGB
Scanning	Static~1/128	Static~1/128	Static~1/128	Static~1/128	Static~1/128
Module construction	√	√	√	√	√
Rotate animation	√	√	√	√	√
Specify setting	√	√	√	√	√
Extract rows/columns	√	√	√	√	√
Brightness correction	√	√	√	√	√
Arbitrary sort	√	√	√	√	√
Bright line control	√	√	√	√	√
Mapping	√	√	√	√	√
Power	5W	5W	5W	5W	5W
