Novastar MCTRL300 Synchronous Independent Controller 1280×1024 Resolution 1.3 Million Loading Capacity

145,28 €210,00 €30% OFF
Retours sous 30 joursGarantie 1 an
Livraison estimée: 6 octobre - 8 octobre.
145,28 €
Quantité
Moyens de paiement
Détails du produit

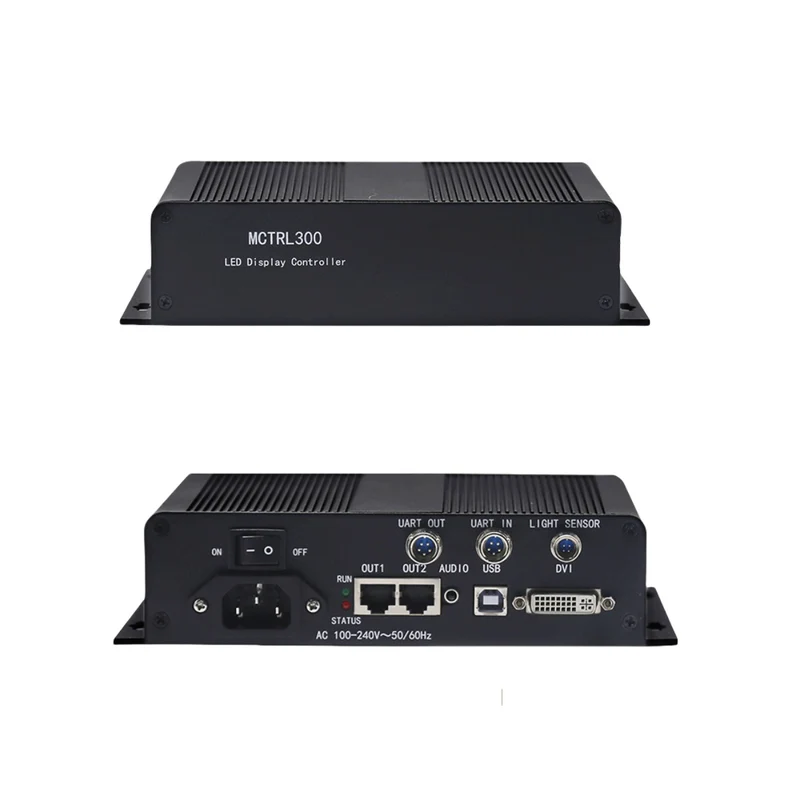

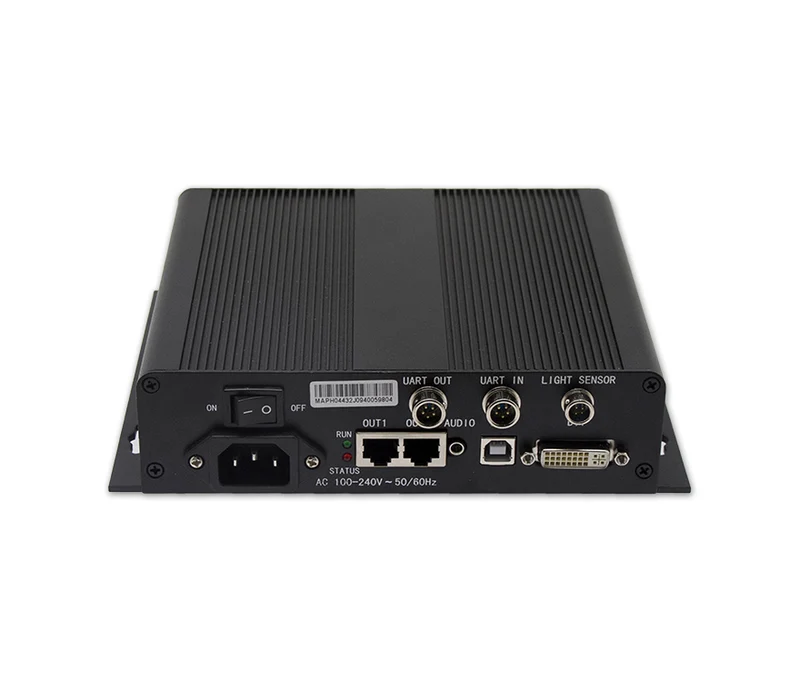

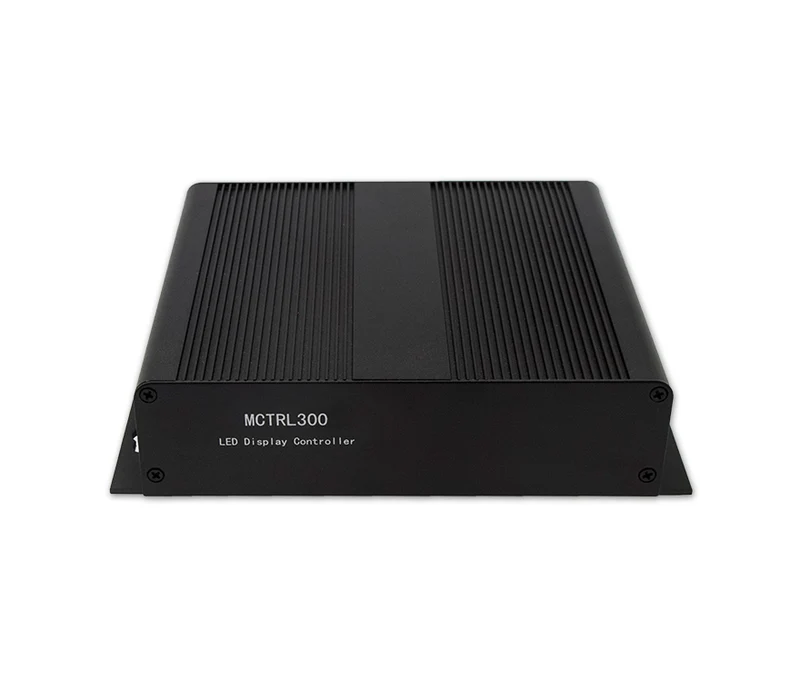

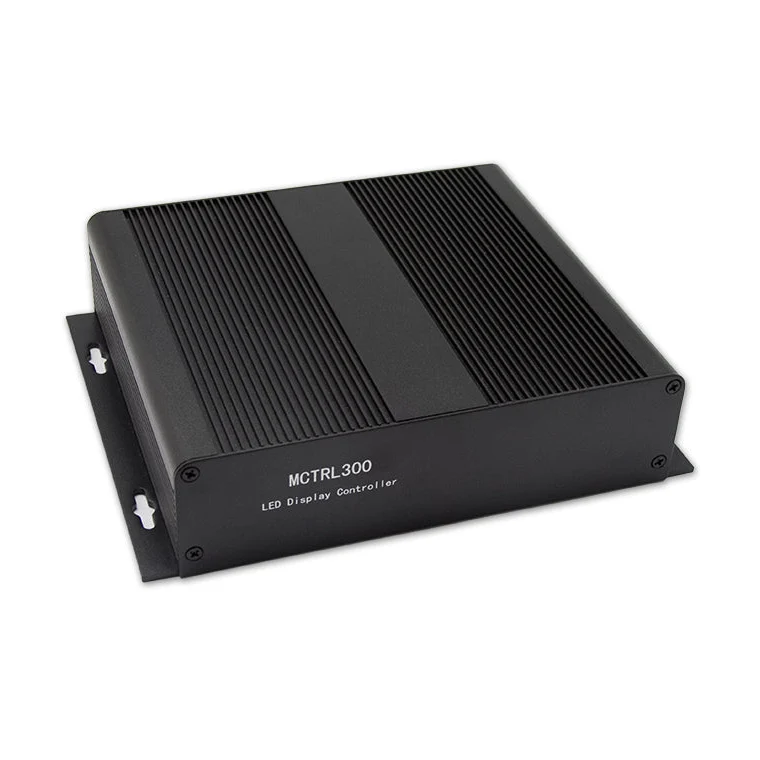

Novastar MCTRL300 Synchronous Independent LED Display Controller – 1× DVI Input, 2× Ethernet Outputs | Up to 1920×1200 Resolution | 1.3 Million Pixel Loading Capacity

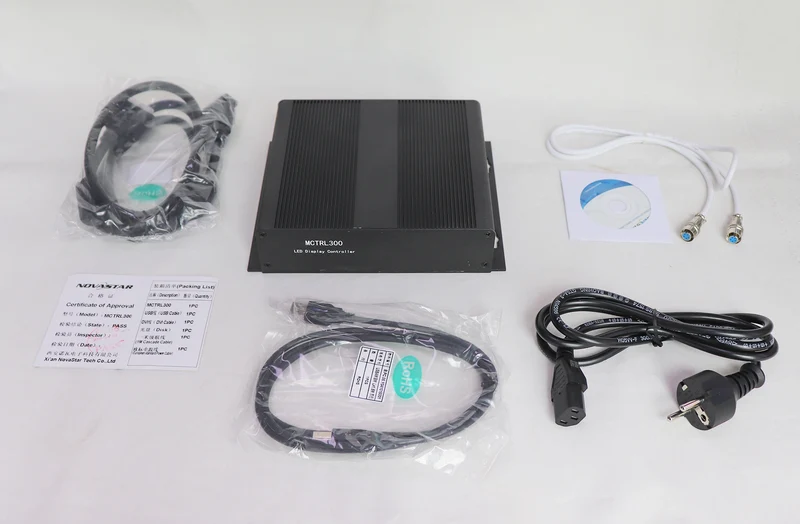

Package Included

Version Package Included
MCTRL300 MCTRL300 controller unit

About this item

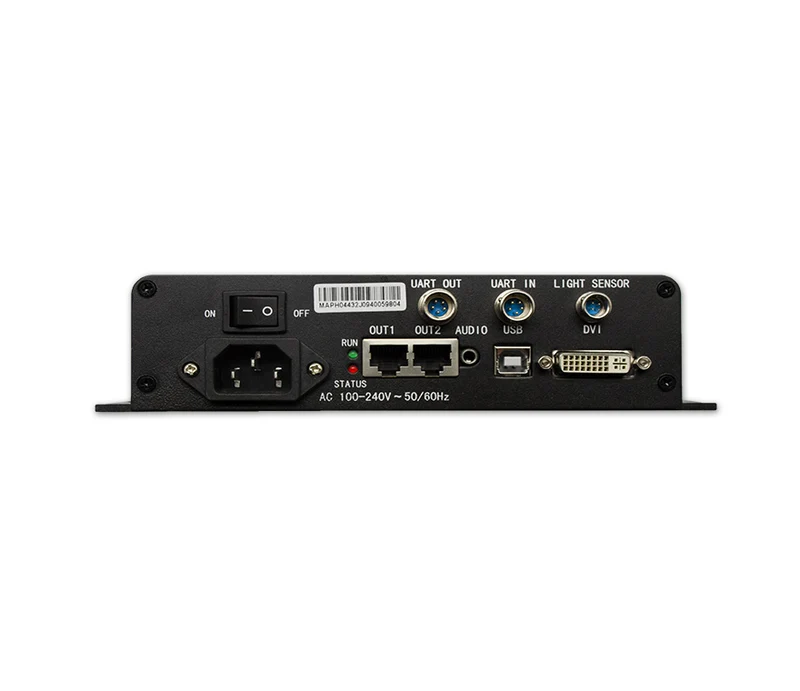

  • LED controller with 1× DVI input, 1× audio input, and 2× Ethernet outputs, supporting resolutions up to 1920×1200@60Hz
  • Pixel-level brightness and chroma calibration with NovaLCT/NovaCLB for consistent image quality
  • Includes 1× light sensor connector, 1× type-B USB port, and 2× UART cascade ports (up to 20 devices)
  • Compact design with efficient cooling, ideal for rental and fixed LED display installations
  • Certified EAC, CE, FCC, IC, PFOS, CB for compliance in multiple markets

Order & Logistics

  • Lead Time: Typically ships within 2–5 business days
  • Packing: Cardboard box
  • Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）
  • Input Ports: 1× DVI, 1× Audio
  • Output Ports: 2× Gigabit Ethernet
  • Supported Resolutions: Up to 1920×1200@60Hz
  • Control Method: Type-B USB, UART cascade (up to 20 units)
  • Power Supply: AC 100–240V
  • Operating Temperature: −20 °C to +60 °C

Usage Notes / Installation Tips

  • Always power off before connecting/disconnecting signal cables
  • Use shielded network cables for stable data transmission
  • Ensure adequate ventilation for prolonged operation

Technical Specifications

Specification Value
Input Connectors 1× SL-DVI, 1× Audio
Output Connectors 2× Gigabit Ethernet
Control Ports 1× Type-B USB; 2× UART (cascade up to 20 devices)
Sensor Port 1× Light sensor
Supported Resolution Up to 1920×1200@60 Hz
Calibration Pixel-level brightness & chroma (with NovaLCT/NovaCLB)
Certifications EAC, CE, FCC, IC, PFOS, CB

Applications

  • Fixed LED billboards
  • Rental stage LED screens
  • Indoor/outdoor advertising
  • Conference / exhibition displays

Downloads

  • Specifications V2.3.0
  • Firmware V4.7.2.0
