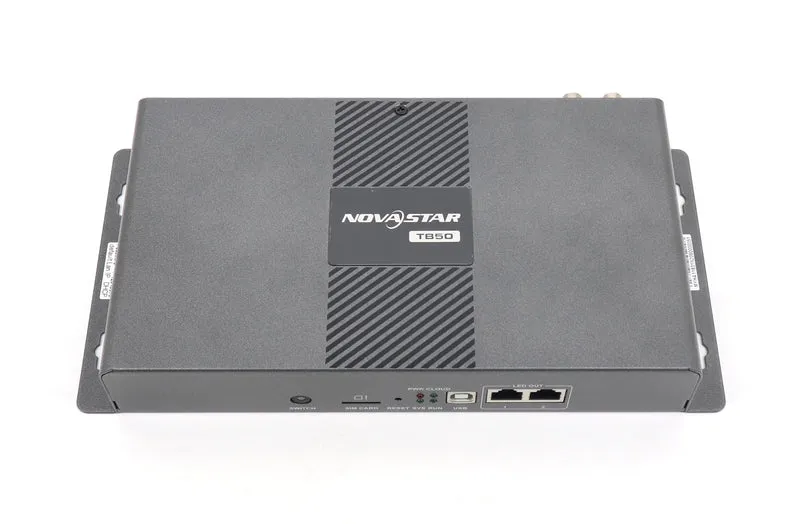

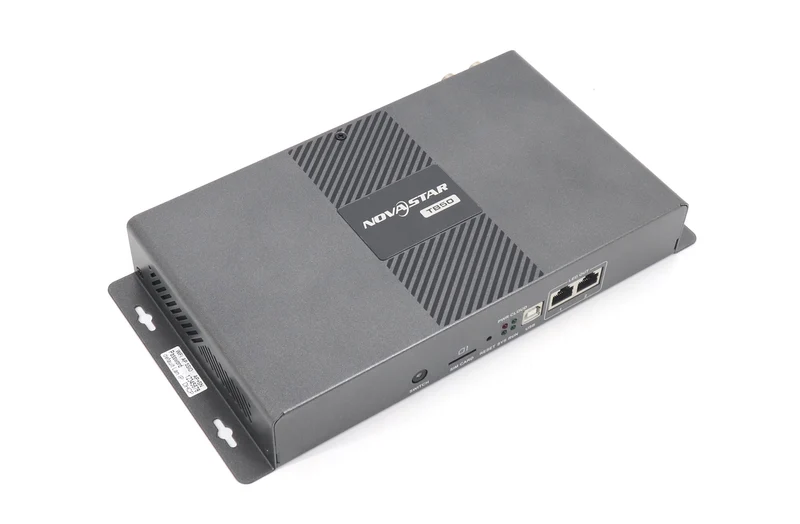

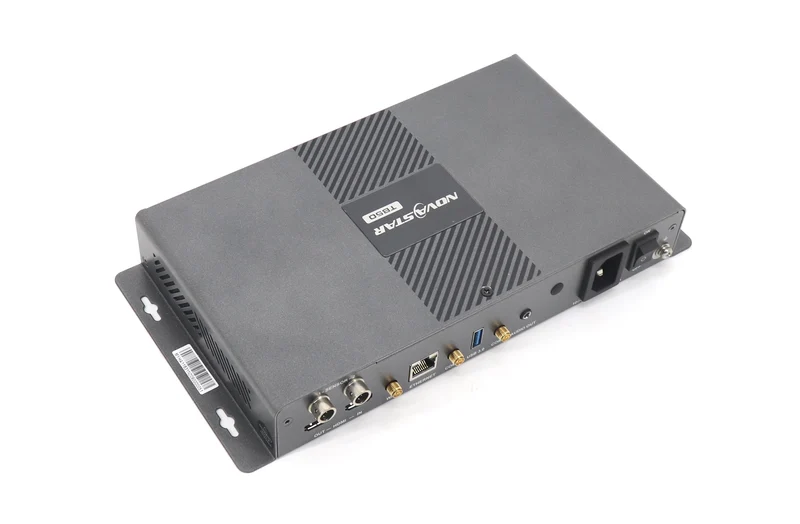

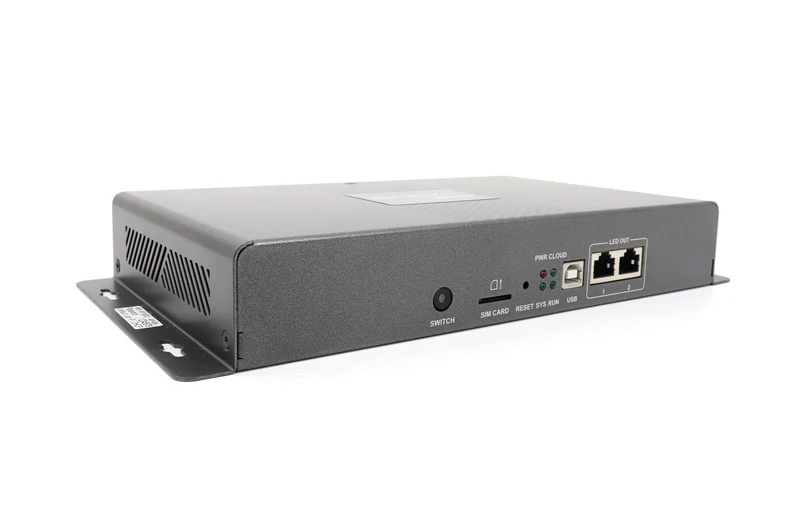

NovaStar TB50 Multimedia Player Sending Box – 1.3 Million Pixels | Hybrid Synchronous & Asynchronous LED Control Box with Quad-Core Android OS for LED Display Screens

NovaStar TB50 Sending Box – 1.3 Million Pixels | Hybrid Synchronous & Asynchronous LED Control Box with Quad-Core Android OS for LED Display Screens

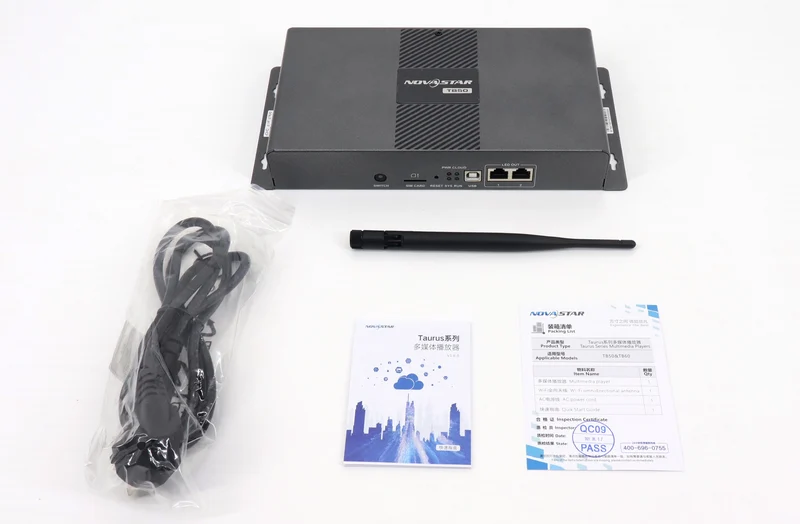

Package Included

Version	Package Included
TB50	1x TB50 Multimedia Player, Power Adapter, User Manual

NOTE: The TB6 has stopped production, replaced by TB50

About this item

• High-performance LED controller, 1.3 million pixel loading capacity
• Supports multiple screen playback synchronization for seamless visuals
• Advanced NovaStar functions: dual mode, dual WiFi, 4G support, redundant backup
• Comprehensive control: PC, mobile, LAN, remote management
• Compact metal case with air cooling for stability and reliability
• Suitable for indoor/outdoor LED displays, rental stage screens, exhibitions

Order & Logistics

• Lead Time: 2–5 business days
• Packing: Cardboard box
• Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）

Key Specifications

• Input Ports: HDMI, USB 3.0
• Output Ports: 2x Ethernet RJ45
• Supported Resolutions: Up to 4096×4096
• Control: USB / Network / WiFi / 4G (optional)
• Power: AC 100–240V
• Operating Temp: -20°C ~ 60°C

Usage Notes / Installation Tips

• Requires professional operation
• Power off before connecting/disconnecting cables
• Use shielded network cables
• Ensure ventilation
• For high sync, use timing module (consult NovaStar)
• 4G requires country/region-specific module

Technical Specifications

Model	TB10 Plus	TB20 Plus	TB30	TB40	TB50	TB60
CPU	4C A35/1.4GHz	4C A35/1.4GHz	4C A55/1.8GHz	4C A55/1.8GHz	4C A55/1.8GHz	4C A55/1.8GHz
Storage	2GB+32GB	2GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB
Decode	4K 60fps	4K 60fps	4K 60fps	4K 60fps	4K 60fps	4K 60fps
OS	Android 10	Android 10	Android 11	Android 11	Android 11	Android 11
Max Capacity	0.65M	0.65M	0.65M	1.3M	1.3M	2.3M
Max WxH	2048×2048 / 8192×2084	2048×2048 / 8192×2084	4096×4096	4096×4096	4096×4096	4096×4096
Video Windows	1x4K/3x1080P/8x720P/16x480P/20x360P	Same	1x4K/2x1080P/4x720P/4x480P/6x360P	Same	Same	Same
LED Output	1 Main 1 Backup	1 Main 1 Backup	1 Main 1 Backup	2 Main	2 Main	4 Main
Sync	NTP,GPS	NTP,GPS	NTP,GPS	NTP,GPS	NTP,GPS	NTP,GPS
Dual Mode	X	√	X	√	√	√
HDMI Splicing	X	X	X	√ 1080p(8)	√ 1080p(8)	√ 1080p(8)
Audio	√	√	√	√	√	√
Sensor	1 Aviation	1 Aviation	2 Aviation	2 Aviation	2 Aviation	2 Aviation
USB	√ USB2.0	√ USB2.0	√ USB3.0	√ USB3.0	√ USB3.0	√ USB3.0
LAN	100 Mbps	100 Mbps	1000 Mbps	1000 Mbps	1000 Mbps	1000 Mbps
WiFi	2.4G AP/STA	Same	Same	Same	Same	Same
4G	Optional	Optional	Optional	Optional	Optional	Optional
5G	X	X	Optional	Optional	Optional	Optional
Viplex	√	√	√	√	√	√
SDK	√	√	√	√	√	√
Case	Metal	Metal	Metal	Metal	Metal	Metal
Power	AC100–240V	AC100–240V	AC100–240V	AC100–240V	AC100–240V	AC100–240V
Certification	CE, FCC, RoHS, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC (TB40 includes CQC, SRRC)

Applications

• Fixed LED billboards
• Rental stage LED screens
• Indoor/outdoor advertising
• Conference / exhibition displays

Documents & Downloads

• Specifications V1.5.0
• Firmware V1.8.3
• Release Notes V1.8.3
• TB50 Specification Sheet

Requires professional operation!
