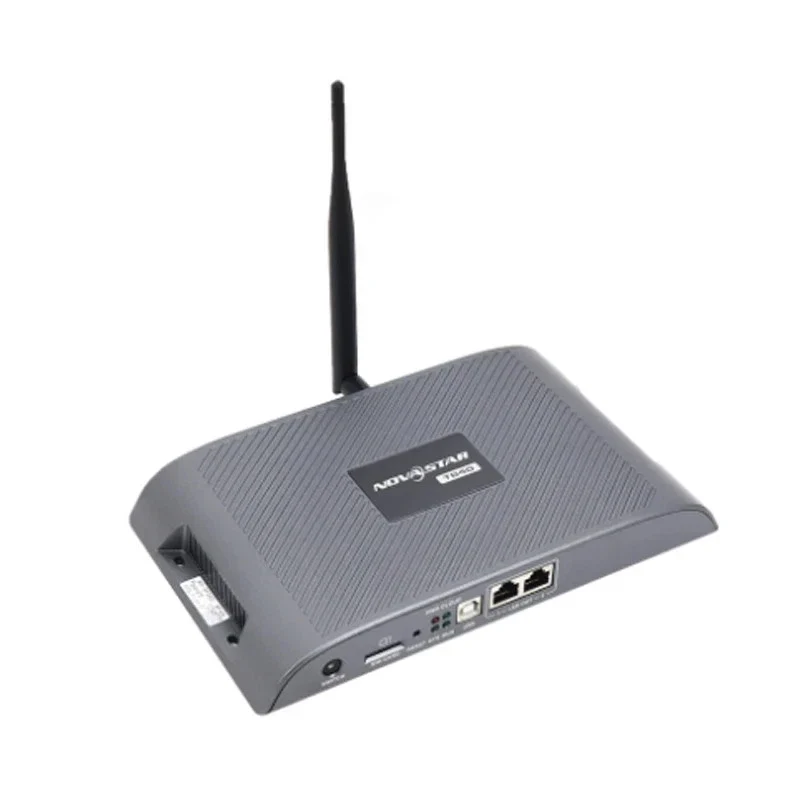

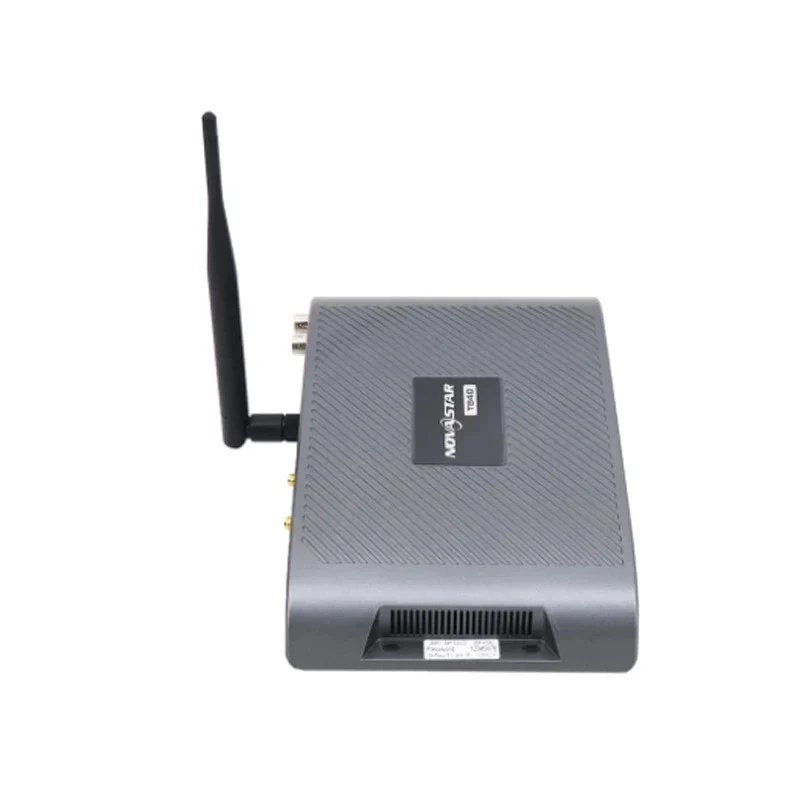

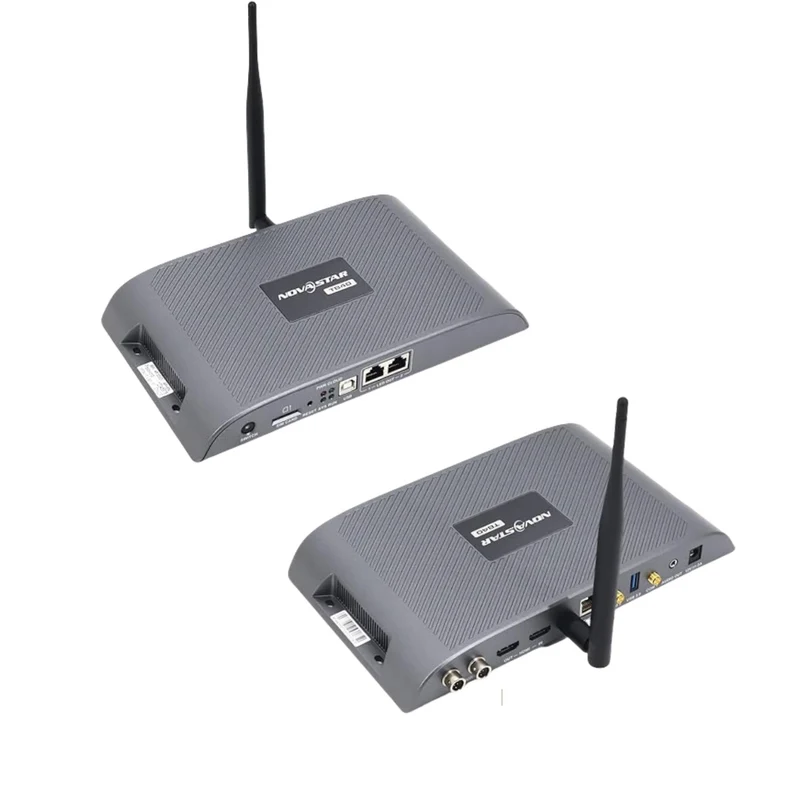

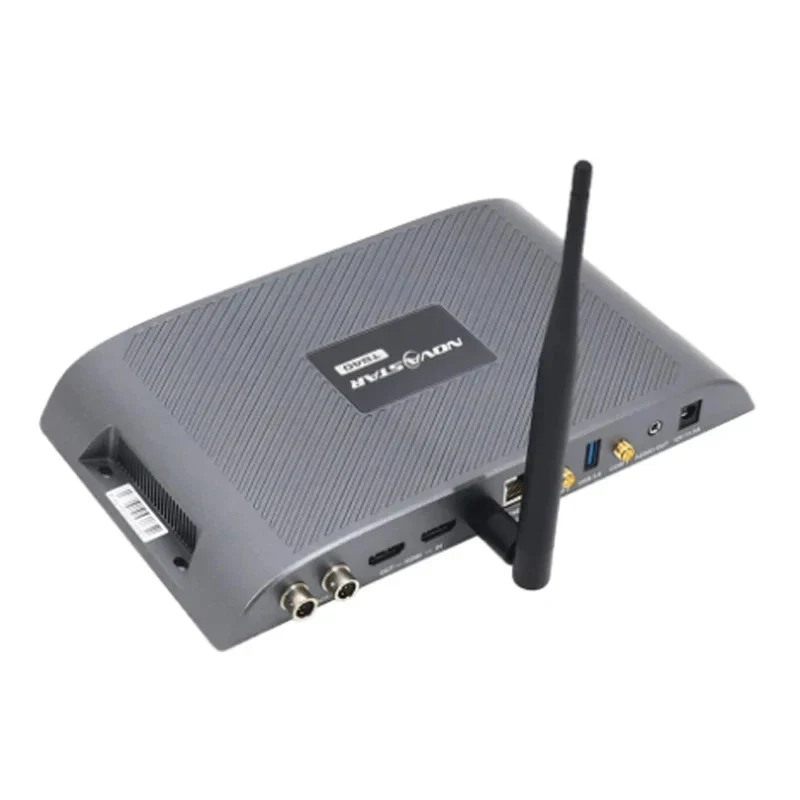

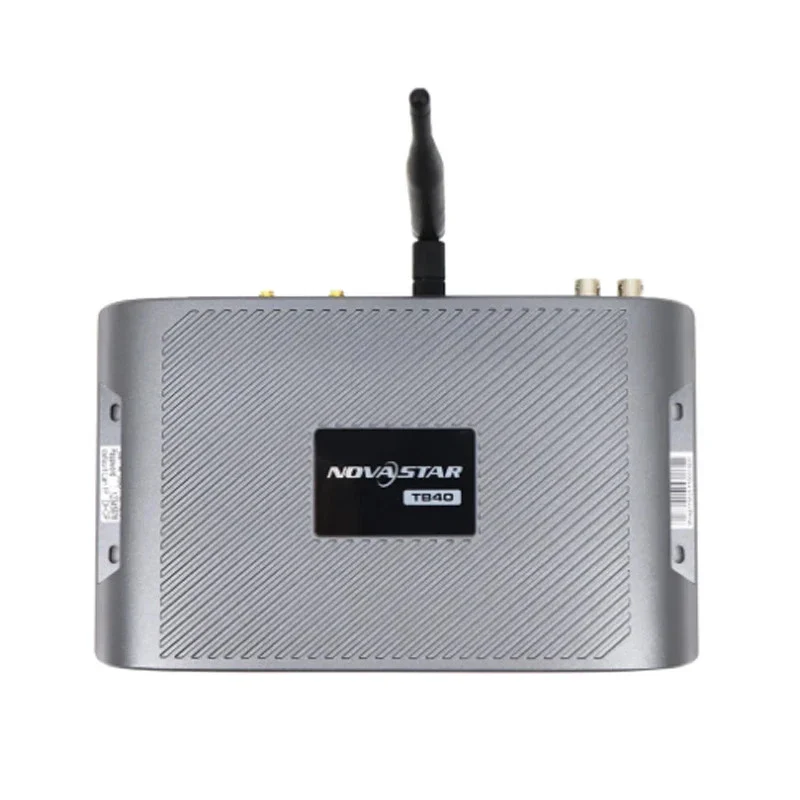

NovaStar TB40 Multimedia Player Sending Box – 1.3 Million Pixels | Dual-Mode Synchronous & Asynchronous LED Controller with HDMI Preview for LED Display Screens

NovaStar TB40 Sending Box – 1.3 Million Pixels | Dual-Mode Synchronous & Asynchronous LED Controller with HDMI Preview for LED Display Screens

Package Included

Version	Package Included
TB40	TB40 Multimedia Player

About this item

• High-performance LED screen controller supporting HDMI, DVI, and Ethernet input/output
• Compatible with multiple LED module pixel pitches, up to 4096×4096 resolution
• NTP/GPS sync, 4G support, dual HDMI splicing playback
• Compact design with efficient heat dissipation
• Ideal for indoor/outdoor fixed installations and rental displays

Order & Logistics

• Lead Time: 2–5 business days
• Packing: Cardboard box
• Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）

Key Specifications

• Input Ports: 1×HDMI, 1×DVI, 2×Ethernet
• Output Ports: 1×Main, 1×Backup
• Supported Resolutions: Up to 4096×4096
• Control Method: USB, Network, WiFi
• Power Supply: AC 100–240V
• Operating Temp: -20°C to 60°C

Usage Notes / Installation Tips

• Always power off before connecting/disconnecting cables
• Use shielded network cables for stability
• Ensure adequate ventilation

Technical Specifications

Specification	TB10 Plus	TB20 Plus	TB30	TB40	TB50	TB60
CPU	4 Core A35/1.4GHz	4 Core A35/1.4GHz	4 Core A55/1.8GHz	4 Core A55/1.8GHz	4 Core A55/1.8GHz	4 Core A55/1.8GHz
Storage	2GB+32GB	2GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB
Decode	4K 60fps	4K 60fps	4K 60fps	4K 60fps	4K 60fps	4K 60fps
OS	Android 10	Android 10	Android 11	Android 11	Android 11	Android 11
Max Cap	0.65M pixels	0.65M pixels	0.65M pixels	1.3M pixels	1.3M pixels	2.3M pixels
Max Res	2048×2048 / 8192×2084	2048×2048 / 8192×2084	4096×4096	4096×4096	4096×4096	4096×4096
Video	1x4K / 3x1080P / 8x720P / 16x480P / 20x360P	1x4K / 3x1080P / 8x720P / 16x480P / 20x360P	1x4K / 2x1080P / 4x720P / 4x480P / 6x360P	1x4K / 2x1080P / 4x720P / 4x480P / 6x360P	1x4K / 2x1080P / 4x720P / 4x480P / 6x360P	1x4K / 2x1080P / 4x720P / 4x480P / 6x360P
Ports	1 Main + 1 Backup	1 Main + 1 Backup	1 Main + 1 Backup	2 Main	2 Main	4 Main
Sync	NTP, GPS	NTP, GPS	NTP, GPS	NTP, GPS	NTP, GPS	NTP, GPS
Dual Mode	X	√	X	√	√	√
HDMI	X	X	X	√ 1080p, up to level 8	√ 1080p, up to level 8	√ 1080p, up to level 8
Audio	√	√	√	√	√	√
Sensor	1 aviation plug	1 aviation plug	2 aviation plugs	2 aviation plugs	2 aviation plugs	2 aviation plugs
USB	√ USB2.0	√ USB2.0	√ USB3.0	√ USB3.0	√ USB3.0	√ USB3.0
LAN	100 Mbps	100 Mbps	1000 Mbps	1000 Mbps	1000 Mbps	1000 Mbps
WiFi	2.4G AP & STA	2.4G AP & STA	2.4G AP & STA	2.4G AP & STA	2.4G AP & STA	2.4G AP & STA
4G	Support (Option)	Support (Option)	Support (Option)	Support (Option)	Support (Option)	Support (Option)
5G	X	X	Support (Option)	Support (Option)	Support (Option)	Support (Option)
Viplex	√	√	√	√	√	√
SDK	√	√	√	√	√	√
Material	Metal Case	Metal Case	Metal Case	Metal Case	Metal Case	Metal Case
Power	AC 100~240V	AC 100~240V	AC 100~240V	AC 100~240V	AC 100~240V	AC 100~240V
Certifications	CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE	CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE	CQC, SRRC, RoHS, CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE	CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE	CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE	CE EMC, LVD, ROHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE

Applications

• Fixed LED billboards
• Rental stage LED screens
• Indoor/outdoor advertising
• Conference / exhibition displays
